                                        SPECIFICATIONS
             1.OPERATING TEMPERATURE:
                 55˚C to + 125˚C
             2.INSULATION RESISTANCE:
                100 MEGOHMS MINIMUM @ 25˚C and 100 VDC
                AFTER 2 MINUTES.
             3.HERMETICALLY SEALED

                LIFE TEST:

                250 HOURS@ 1.5 TIMES WORKING VOLTAGE
                IR AFTER TEST: GREATER THAN 50 MEGOHMS
             4.MOISTURE RESISTANCE:
                PER METHOD 106 OF MIL-STD-202
                AFTER TEST FILTERS SHALL MEET ALL INTERNAL
                REQUIREMENTS.
             5.TEMPERATURE CYCLING AND IMMERSION:

                 PER METHOD 102, CONDITION D AND METHOD 104,
                 CONDITION B OF MIL-STD-202, AFTER TEST FILTERS
                 SHALL MEET ALL INITIAL REQUIREMENTS
             6. VIBRATION:
                 PER METHOD 204, CONDITION B OF MIL-STD-202.
                 AFTER TEST FILTERS SHALL MEET ALL INITIAL
                 REQUIREMENTS
             7. MARKING:
                 P/N, WORKING VOLAGE, CURRENT AND DATE CODE
             8 .MILITARY SPECIFICATIONS:
                 LOW-PASS FILTERS MEET OR EXCEED THE APPLICABLE
                 REQUIREMENTS OF MIL-F-15733.
              9.ATTENUATION:
                 MEASUREMENTS MADE IN A 50 OHM SYSTEM PER
                 MIL-STD-220

            50 VDCW
             WORKING VOLTAGE:
             50 VDC @ 85˚C,  OR EQUIVALENT AC PEAK
             35 VDC @105˚C, OR EQUIVALENT AC PEAK
             28 VDC @125˚C, OR EQUIVALENT AC PEAK
             DIELECTRIC WITHSTANDING TEST
             100 VDC @ 25˚C,  50 ma MAX, CHARGING CURRENT
            100 VDCW

             WORKING VOLTAGE:
             100 VDC @ 85˚C,OR EQUIVALENT AC PEAK
             70 VDC @105˚C, OR EQUIVALENT AC PEAK
             56 VDC @125˚C, OR EQUIVALENT AC PEAK
             DIELECTRIC WITHSTANDING TEST
             200 VDC @ 25˚C,  50 ma MAX, CHARGING CURRENT
             115 VDCW
             WORKING VOLTAGE:
             115 VAC, 400 Hz at + 85˚C
             115 VAC,   60 Hz at +125˚C
             185 VDC,   at + 85˚C
             150 VDC,   at + 125˚C
             DIELECTRIC WITHSTANDING TEST
             375 VDC @ 25˚C,  50 ma MAX, CHARGING CURRENT

STANDARD RATINGS
MINIMUM INSERTION LOSS IN dB (MIL-STD-220)



PART NO.


CURRENT
RATED(AMPS)


30KH


150KHz


300KHz


1MHz



10MHz


100MHz



1GHz


10GHz

MAX. D.C.
RESISTANCE(OHMS

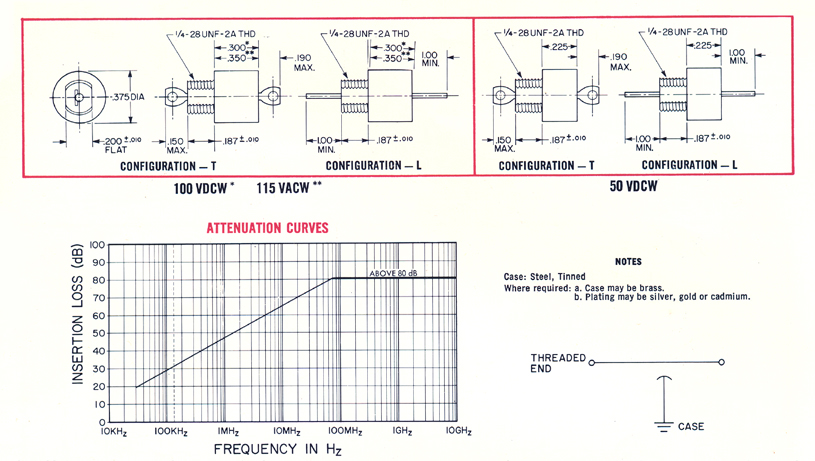

ATTENUATION
     CURV
LMB-50-006-
 .060
 45
 70
 80
 80

    80

 80
 80
 80
 70

LMB-100-010-
.100
35
55
70
80
    80
 80
 80
 80
 15
          B
LMB-115-025-
.250
26
47
    60
80
    80
 80
 80
 80
 4
          C
 LMB-115-045-        .450
20
    42
    53  72    80     80   80   80             1.2          D
 LMB-115-100-         1.000
16
    36    48  66    80     80   80    80

                .09

          E
 LMB-115-200-       2.000
13
    34
     46  64    80     80   80   80             0.75          F
 LMB-115-300-       3.000
10
    32
     44  62    80     80   80   80              0.3         G
 LMB-115-500-       5.000
10
    32
     44  62
    80     80   80   80                    0.1         G
 LMB-115-103-      10.000
10

     32

     44
  62
    80     80    80    80                  0.01         G
